Travis Steel, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Carbon Steel EN 10210-1 Pipes**. They specialize in crafting high-quality seamless pipes that are built for strength, durability, and precision, making them perfect for both structural and industrial applications. With a reputation for strictly following international standards, Travis Steel ensures that their pipes boast excellent dimensional accuracy and mechanical performance, which guarantees reliable operation in a variety of conditions. These EN 10210-1 Pipes are widely utilized in construction, engineering, and industrial projects, thanks to their superior weldability, toughness, and resistance to corrosion. With a strong commitment to quality and customer satisfaction, Travis Steel has earned its place as a trusted provider of high-performance piping solutions throughout Australia and beyond.
The Carbon Steel EN 10210-1 Pipes are made up of carbon, manganese, phosphorus, sulfur, and trace amounts of silicon, creating a well-balanced mix of strength, ductility, and toughness. They showcase impressive tensile strength ranging from 360 to 510 MPa, with a minimum yield strength of 235 MPa. These pipes are known for their excellent weldability, impact resistance, and dimensional stability. Their unique chemical makeup and mechanical properties ensure they remain durable and structurally sound, providing reliable performance in medium-pressure structural and industrial applications.
| Attribute | Specification |
|---|---|
| Type | Seamless / Welded / ERW |

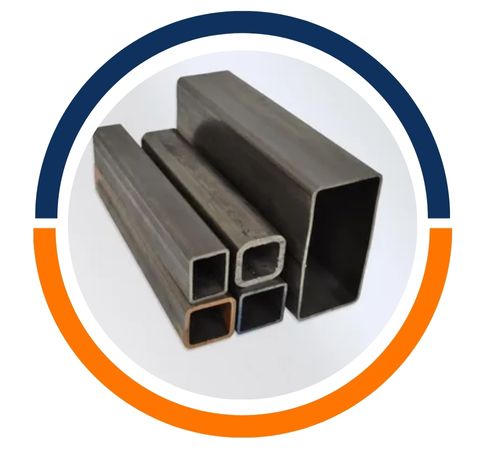

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm to 400 x 400 mm |
| Length | 6000 mm to 14000 mm |
| Dimensional Tolerances | Thickness: All sizes +/- 10% |
| Standard | BS EN 10210 – Hot finished structural hollow sections of non-alloy and fine grain steels |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3 mm to 914 mm |
| Packing | In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark |
| Wall Thickness | 0.5 mm to 25 mm |
| Steel Grade | Chemical Composition Limits (%) | |||||
| C Max. | Si Max. | Mn Max. | P Max. | S Max. | N Max. | |
| S235JRH | 0.17 | – | 1.40 | 0.040 | 0.040 | 0.009 |
| S275J0H | 0.20 | – | 1.50 | 0.035 | 0.035 | 0.009 |
| S275J2H | 0.20 | – | 1.50 | 0.030 | 0.030 | – |
| S355J0H | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | 0.009 |
| S355J2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| S355K2H | 0.22 | 0.55 | 1.60 | 0.030 | 0.030 | – |
| Steel Grade | Mechanical Properties | Impact Energy (KV J) | ||||
| Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) | Test Temperature At Test Temperature of ℃ | |||
| -20 | 0 | 20 | ||||
| S235JRH | 235 | 360-510 | 26 | – | – | 27 |
| S275J0H | 275 | 410-560 | 23 | – | 27 | – |
| S275J2H | 275 | 410-560 | 23 | 27 | – | – |
| S355J0H | 355 | 510-680 | 22 | – | 27 | – |
| S355J2H | 355 | 510-680 | 22 | 27 | – | – |
| S355K2H | 355 | 510-680 | 22 | 40 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Pipe products in Canberra, Australia. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Pipe needs.
| Size mm | kg/m | Size mm | kg/m |
| 20 x 20 x 2.0 | 1.12 | 20 x 20 x 2.5 | 1.35 |
| 25 x 25 x 1.5 | 1.06 | 25 x 25 x 2.0 | 1.43 |
| 25 X 25 X 2.5 | 1.74 | 25 X 25 X 3.0 | 2.04 |
| 30 X 30 X 2.0 | 1.68 | 30 X 30 X 2.5 | 2.14 |
| 30 X 30 X 3.0 | 2.51 | 40 x 40 x 1.5 | 1.81 |
| 40 x 40 x 2.0 | 2.31 | 40 x 40 x 2.5 | 2.92 |
| 40 x 40 x 3.0 | 3.45 | 40 x 40 x 4.0 | 4.46 |
| 40 x 40 x 5.0 | 5.40 | 50 x 50 x 1.5 | 2.28 |
| 50 x 50 x 2.0 | 2.93 | 50 x 50 x 2.5 | 3.71 |
| 50 x 50 x 3.0 | 4.39 | 50 x 50 x 4.0 | 5.72 |
| 50 x 50 x 5.0 | 6.97 | 60 x 60 x 3.0 | 5.34 |
| 60 x 60 x 4.0 | 6.97 | 60 x 60 x 5.0 | 8.54 |
| 60 x 60 x 6.0 | 9.45 | 70 x 70 x 3.0 | 6.28 |
| 70 x 70 x 3.6 | 7.46 | 70 x 70 x 5.0 | 10.11 |
| 70 x 70 x 6.3 | 12.50 | 70 x 70 x 8 | 15.30 |
| 75 x 75 x 3.0 | 7.07 | 80 x 80 x 3.0 | 7.22 |
| 80 x 80 x 3.6 | 8.59 | 80 x 80 x 5.0 | 11.70 |
| 80 x 80 x 6.0 | 13.90 | 90 x 90 x 3.0 | 8.01 |
| 90 x 90 x 3.6 | 9.72 | 90 x 90 x 5.0 | 13.30 |
| 90 x 90 x 6.0 | 15.76 | 90 x 90 x 8.0 | 20.40 |
| 100 x 100 x 3.0 | 8.96 | 100 x 100 x 4.0 | 12.00 |
| 100 x 100 x 5.0 | 14.80 | 100 x 100 x 5.0 | 14.80 |
| 100 x 100 x 6.0 | 16.19 | 100 x 100 x 8.0 | 22.90 |
| 100 x 100 x 10 | 27.90 | 120 x 120 x 5 | 18.00 |
| 120 x 120 x 6.0 | 21.30 | 120 X 120 X 6.3 | 22.30 |
| 120 x 120 x 8.0 | 27.90 | 120 x 120 x 10 | 34.20 |
| 120 X 120 X 12 | 35.8 | 120 X 120 X 12.5 | 41.60 |
| 140 X 140 X 5.0 | 21.10 | 140 X 140 X 6.3 | 26.30 |
| 140 X 140 X 8 | 32.90 | 140 X 140 X 10 | 40.40 |
| 140 X 140 X 12.5 | 49.50 | 150 X 150 X 5.0 | 22.70 |
| 150 X 150 X 6.3 | 28.30 | 150 X 150 X 8.0 | 35.40 |
| 150 X 150 X 10 | 43.60 | 150 X 150 X 12.5 | 53.40 |
| 150 X 150 X 16 | 66.40 | 150 X 150 X 16 | 66.40 |
| 180 X 180 X 5 | 27.40 | 180 X 180 X 6.3 | 34.20 |
| 180 X 180 X 8 | 43.00 | 180 X 180 X 10 | 53.00 |
| 180 X 180 X 12.5 | 65.20 | 180 X 180 X 16 | 81.40 |
| 200 X 200 X 5 | 30.50 | 200 X 200 X 6 | 35.8 |
| 200 x 200 x 6.3 | 38.2 | 200 x 200 x 8 | 48.00 |
| 200 x 200 x 10 | 59.30 | 200 x 200 x 12.5 | 73.00 |
| 200 x 200 x 16 | 91.50 | 250 x 250 x 6.3 | 48.10 |
| 250 x 250 x 8 | 60.50 | 250 x 250 x 10 | 75.00 |
| 250 x 250 x 12.5 | 92.60 | 250 x 250 x 16 | 117.00 |
| 300 x 300 x 6.3 | 57.90 | 300 x 300 x 8 | 73.10 |
| 300 x 300 x 10 | 57.90 | 300 x 300 x 8 | 90.70 |
| 300 x 300 x 12.5 | 112.00 | 300 x 300 x 16 | 142.00 |
| 350 x 350 x 8 | 85.70 | 350 x 350 x 10 | 106.00 |
| 350 x 350 x 12.5 | 132.00 | 350 x 350 x 16 | 167.00 |
| 400 x 400 x 10 | 122.00 | 400 x 400 x 12 | 141.00 |
| 400 x 400 x 12.5mm | 152.00 | 400 x 400 x 16 | 192 |
| Outer diameter and wall Thickness | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance | ||||||
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm | ||||||
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) | ||||||
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm | ||||||
You’ll find Carbon Steel EN 10210-1 Pipes being used extensively in structural frameworks, bridges, high-rise buildings, and industrial constructions that demand strength and durability. They’re perfect for load-bearing columns, beams, and piping systems that experience moderate stress. Additionally, these pipes are commonly used in fabrication projects, mechanical structures, and engineering applications where corrosion resistance and precise dimensions are crucial. Thanks to their compliance with EN standards, along with robust mechanical properties and precision manufacturing, Carbon Steel EN 10210-1 Pipes have become the go-to choice for industries in search of durable, high-performance structural and piping solutions.
Travis Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Canberra, Australia.
