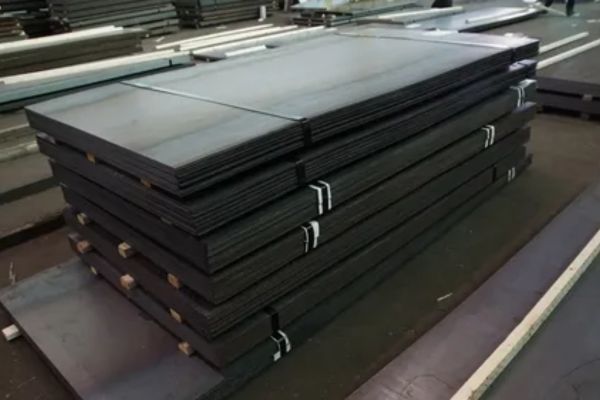

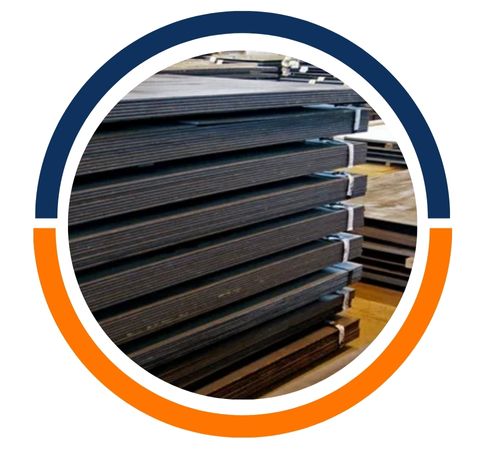

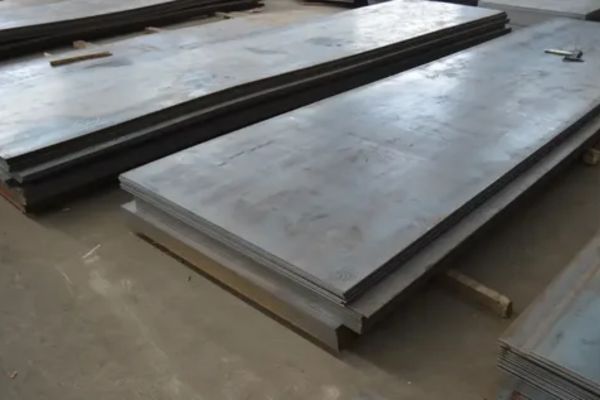

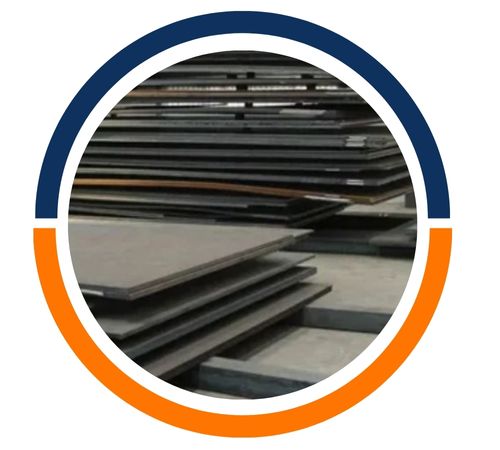

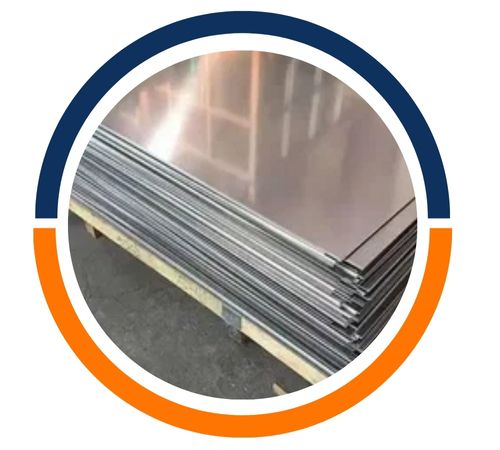

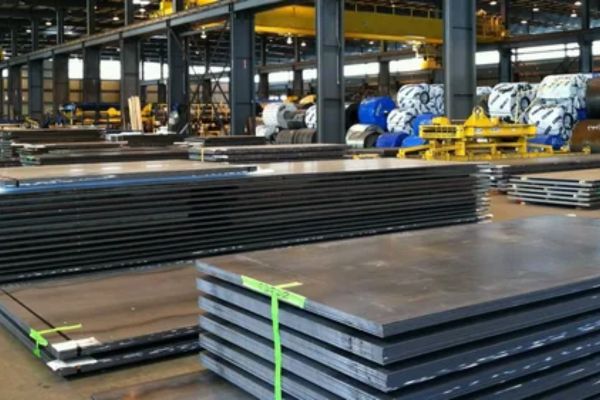

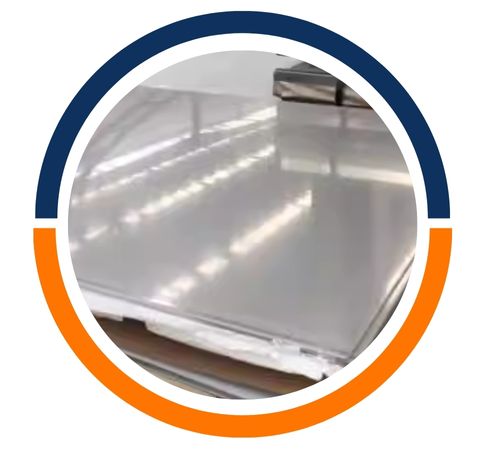

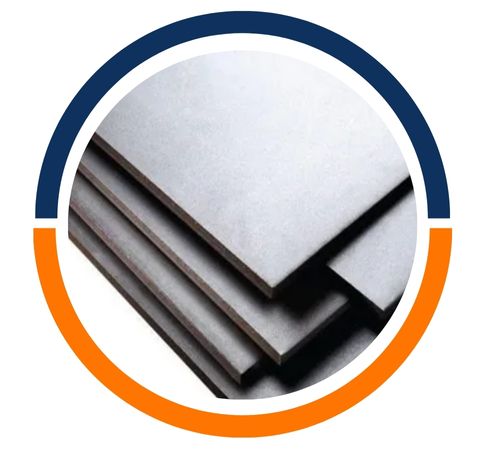

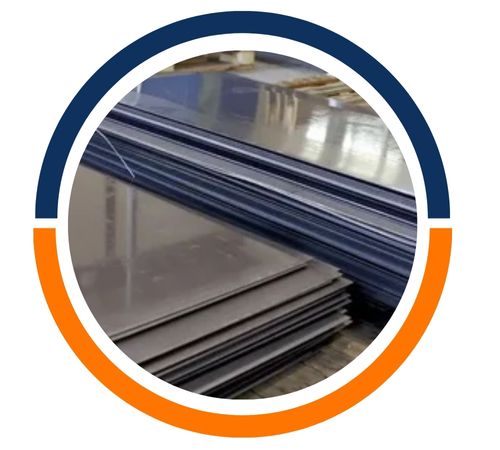

Travis Steel, a well-respected manufacturer and supplier located in Canberra, Australia, is all about delivering top-notch 500 BHN Sheets and Plates. These plates are famous for their incredible hardness, strength, and durability, making them perfect for tackling the toughest wear and impact challenges. With a commitment to precision manufacturing and rigorous quality control, Travis Steel ensures that their products meet international standards. The 500 BHN Sheets and Plates from Travis Steel are a go-to choice in industries that need superior abrasion resistance, making them ideal for mining, construction, material handling, and heavy engineering projects.
These plates are primarily made up of carbon, manganese, chromium, nickel, molybdenum, and boron, which together provide remarkable hardness and wear resistance. They boast a Brinell hardness of around 500 HB, ensuring they can handle tough impacts with ease. With impressive tensile strength ranging from 1250 to 1600 MPa and a yield strength of about 1000 MPa, these plates are built to last. Their well-balanced alloy composition not only offers good weldability and formability but also maintains high resistance to abrasion, deformation, and fatigue, even in the harshest working conditions.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | min – max 1) | not guaranteed |
| 3 – 80 | 425 – 475 | 1100 – 1300 |
| (80) – 100 | 410 – 475 | 1050 – 1300 |
| (100) – 130 | 390 – 475 | 1000 – 1300 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
