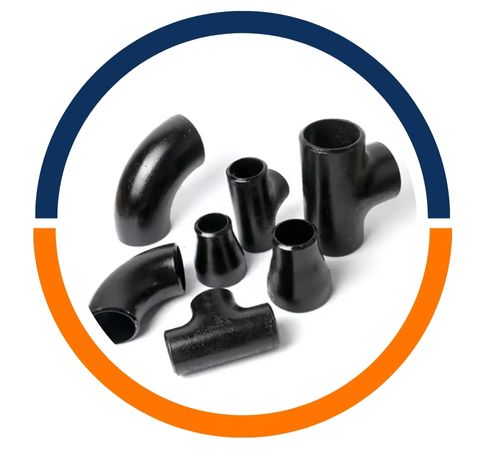

Travis Steel, a top-notch manufacturer and supplier located in Canberra, Australia, specializes in high-quality Carbon Steel WPHY 65 Pipe Fittings. These fittings are crafted for exceptional strength, durability, and reliability, making them perfect for high-pressure and high-temperature piping systems. Each piece is precision-engineered to meet international standards, ensuring they boast excellent dimensional accuracy, corrosion resistance, and consistent mechanical performance. Designed for critical industrial applications, these Carbon Steel WPHY 65 Pipe Fittings are built to deliver robust and long-lasting performance. With a strong commitment to quality, reliability, and customer satisfaction, Travis Steel is your go-to source for dependable steel solutions across oil and gas, petrochemical, power generation, and industrial piping systems.
The Carbon Steel WPHY 65 Pipe Fittings are made up of carbon, manganese, phosphorus, sulfur, and a few trace alloying elements, which together provide high tensile strength, toughness, and outstanding mechanical properties. These fittings are known for their superior yield strength, impact resistance, and stability even under high-pressure and elevated-temperature conditions. Their chemical makeup guarantees reliable weldability, corrosion resistance, and structural integrity. WPHY 65 steel strikes a perfect balance between durability and mechanical efficiency, making these pipe fittings ideal for industrial applications that demand safe, reliable, and long-term performance.
| Specification: | ASTM A860 WPHY 65 Fittings |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |

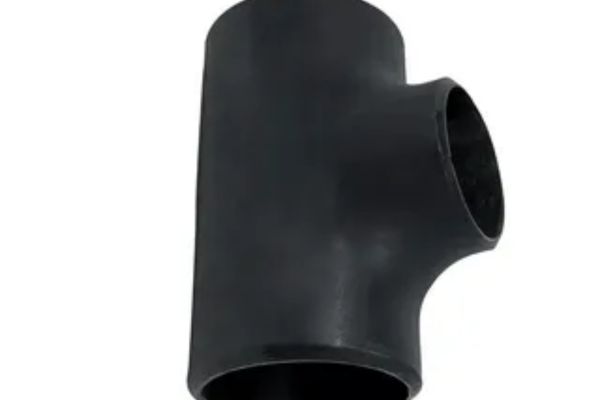

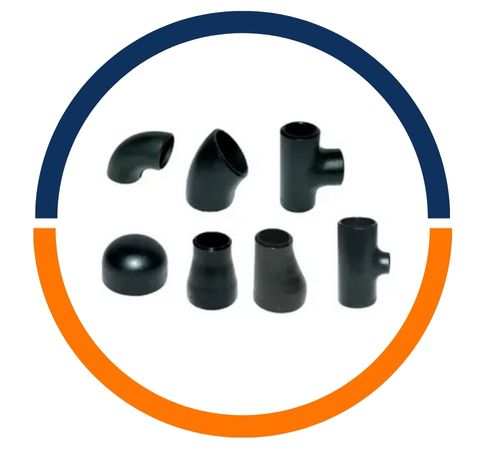

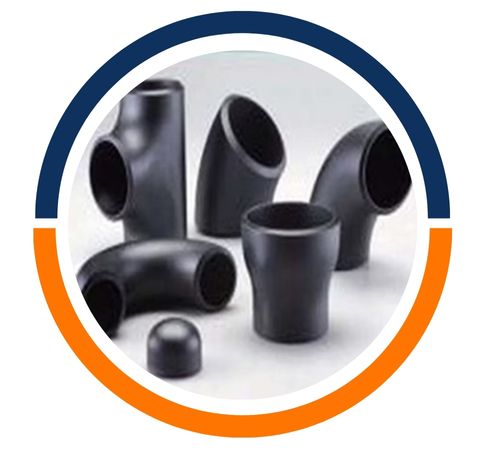

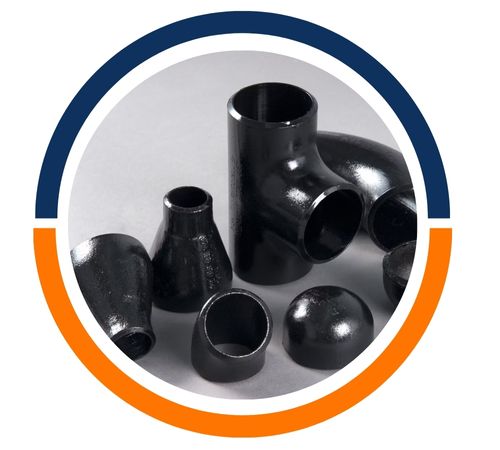

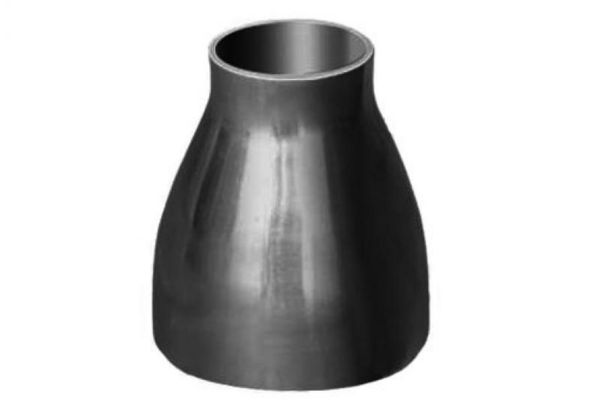

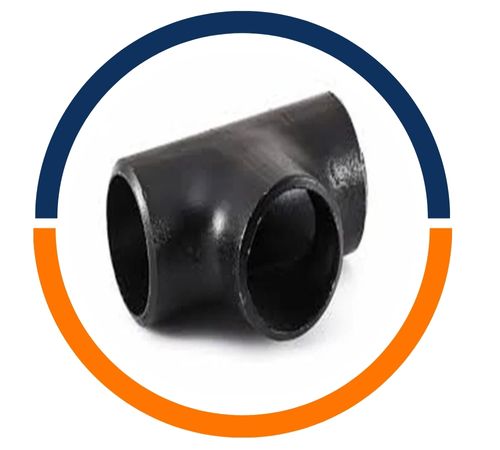

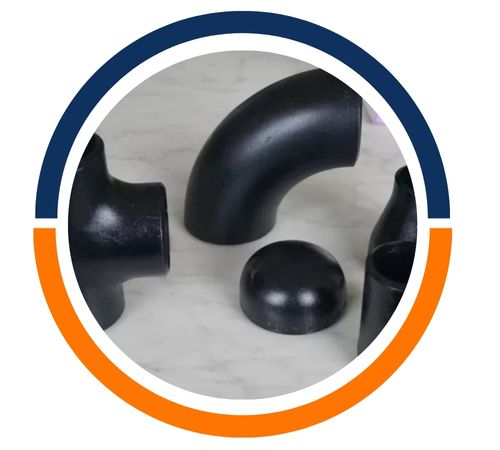

| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 65 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Elongation | Tensile Strength | Yield Strength (0.2%Offset) |
| ASTM A860 WPHY 65 Fittings | 28 % | 515-690 | 415 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

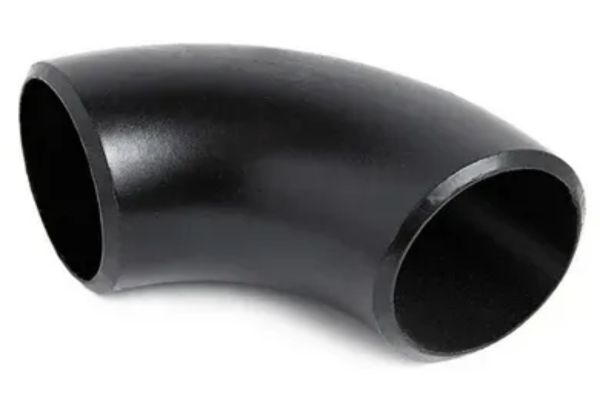

| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Travis Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 65 Pipe Fittings products in Canberra, Australia. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll find Carbon Steel WPHY 65 Pipe Fittings widely used in industries that require strong and durable piping components. They’re commonly found in oil and gas pipelines, refineries, petrochemical plants, and power generation facilities. Plus, they’re essential in high-pressure steam lines, chemical processing, and industrial piping systems where toughness, corrosion resistance, and long-term reliability are a must. Thanks to their excellent mechanical properties, precise dimensions, and extended service life, these fittings ensure safe and efficient operation. Travis Steel’s Carbon Steel WPHY 65 Pipe Fittings are your reliable choice for robust, dependable performance.
