Travis Steel, located in Canberra, Australia, is a reputable manufacturer and supplier of top-notch Carbon Steel A36 Flanges, designed for durability and dependable performance in various industrial and mechanical settings. The company is recognized for its precision, strength, and commitment to international standards, ensuring that their products consistently deliver quality and long-lasting service. With state-of-the-art manufacturing facilities and strict quality control measures, Travis Steel creates flanges that are not only dimensionally accurate but also structurally sound and finished to precise specifications. A36 Flanges are highly sought after for their impressive strength, weldability, and versatility, making them perfect for piping systems, pressure vessels, and structural connections.

CS A36 Flanges Manufacturer in Melbourne, Carbon Steel A36 Flanges Weight Chart, CS A36 Flanges Manufacturer in Melbourne, CS A36 Flanges Distributor in Sydney, Carbon Steel A36 Flanges Price List in Australia, A36 Carbon Steel Flange Sizes in mm, CS A36 Flanges Distributor in Sydney, A36 Carbon Steel Flange Exporter in Adelaide, Carbon Steel A36 Flanges Supplier in Melbourne

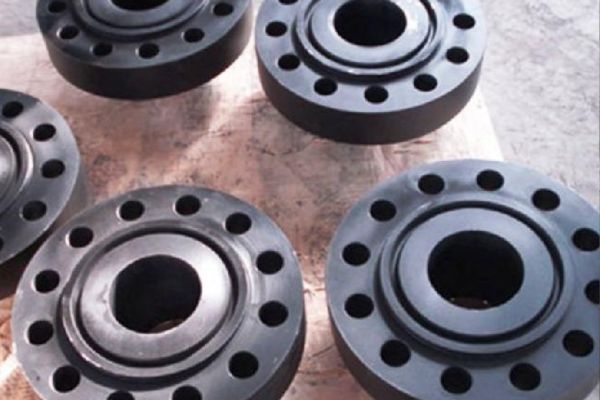

ASTM A36 Carbon Steel RTJ Flanges

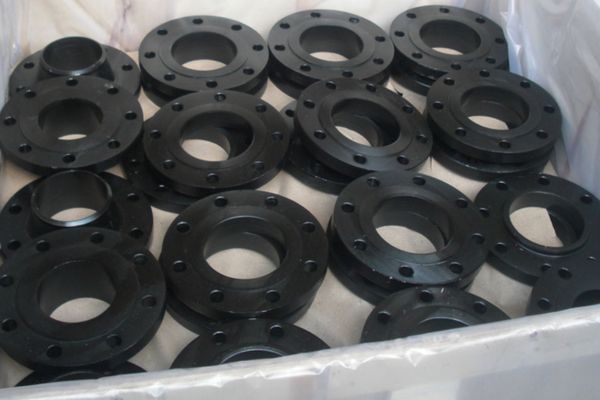

Carbon Steel A36 Forged Flanges

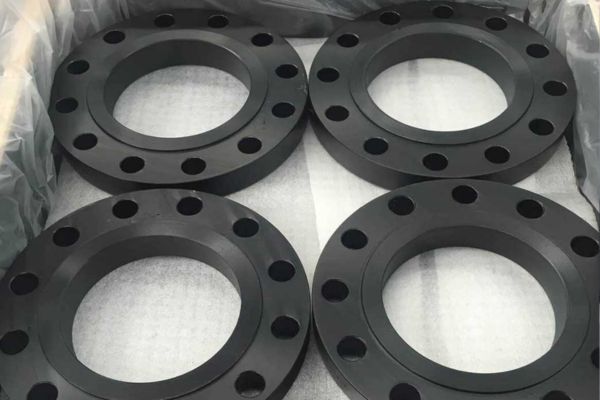

Carbon Steel A36 Flat Face Flanges

What is Carbon Steel A36 Flanges?

Typically, Carbon Steel A36 Flanges contain up to 0.26% carbon, 0.80–1.20% manganese, along with trace amounts of sulfur, phosphorus, and silicon. This specific composition grants them good tensile strength, ductility, and excellent weldability, ensuring they perform reliably across a range of industrial environments. The flanges maintain consistent mechanical properties, impact resistance, and dimensional stability. Through controlled manufacturing and heat treatment processes, their toughness, durability, and wear resistance are enhanced, making A36 Flanges ideal for critical piping, structural, and mechanical applications where performance and safety are paramount.

Carbon Steel A36 Flanges Stockist in Adelaide, Carbon Steel A36 Flanges in Brisbane, Carbon Steel A36 Flanges Distributor in Australia, Carbon Steel A36 Flanges Price List in Australia, CS A36 Flange Size Chart, Carbon Steel A36 Flanges in Sydney, CS A36 Flanges Price in Brisbane, CS A36 Flanges Stockist in Adelaide, Carbon Steel A36 Flange Supplier in Melbourne, ASME SA36 Flanges Supplier in Australia

Carbon Steel A36 Flanges Specification

pecifications	ASTM A36 / ASME SA36
Dimensions	ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Carbon Steel A36 Flanges Chemical Composition

Grade	C	Si	Mn	P	S
A36	0.25 max	0.40 max	0.80 – 1.20	0.040 max	0.050 max

Carbon Steel A36 Flanges Mechanical Properties

Tensile Strength min.		Yield Strength min.		Elongation min.	Reduction of Area, min.	Hardness
MPa	ksi	MPa	ksi	%	%	HBW
485	70	250	36	22	30	137-187

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel A36 Flange in Canberra, Australia

Travis Steel is one of the most prominent manufacturers and suppliers of superior quality Carbon Steel A36 Flanges in Canberra, Australia. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.

Manufacturing Standards / Pressure Rating of Carbon Steel A36 Flanges

ASME/ANSI B 16.5	Blind Flange, High Hub Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Ring Type Joint Flange, Lap Joint Flange, Threaded Flange
PRESSURE CLASS	150, 300, 400, a36, 900, 1500, 2500
ASME/ANSI B 16.47	Blind Flange [Series A & B],Welding Neck Flange
PRESSURE CLASS	75, 150, 300, 400, a36, 900
ASME/ANSI B 16.36	Slip on Flange, Threaded Flange, Welding Neck Flange,
PRESSURE CLASS	300, 400, a36, 900, 1500, 2500
BS 4504 SEC 3.1	Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange, Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange,
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange, Welding Neck Flange, Hubbed Slip-On Hubbed Threaded,
PRESSURE CLASS	150, 300, 400, a36, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Carbon Steel A36 Flanges Exporter in Sydney, A36 Carbon Steel Flange Supplier in Australia, CS A36 Flanges Stockist in Adelaide, ASME SA36 Flanges Supplier in Adelaide, Carbon Steel A36 Flanges Size Chart, Carbon Steel A36 Flanges Exporter in Melbourne, CS A36 Flanges Price in Brisbane, Carbon Steel ANSI A36 Flanges Supplier in Adelaide, CS A36 Flanges Supplier in Australia, Carbon Steel A36 Flanges in Brisbane

Types of Carbon Steel A36 Flanges

Carbon Steel A36 Flange Dimensions Chart

NPS	O.D. of Flange	Flanges Thickness	Diameter of RF	Diameter of Hub at Base	Lengtd Tdru Hub			Bore or Diameter		Dia. of Hub at Bevel	Radius of Fillet	Deptd of Socket
	O.D. of Flange	Flanges Thickness	Diameter of RF	Diameter of Hub at Base	Welding (WN) Neck	Slip-On (SORF) Threaded (NPT) Socket (SWRF)	Lap Joint (Loose)	Slip-on (SORF) Socket (SWRF)	Lap Joint (Loose)	Dia. of Hub at Bevel	Radius of Fillet	Deptd of Socket
	O	Q	R	X	Y	Y	Y	W	B	H	r	Z
1/2	3-1/2	7/16	1-3/8	1-3/16	1-7/8	5/8	5/8	.88	.90	.84	1/8	3/8
3/4	3-7/8	1/2	1-11/16	1-1/2	2-1/16	5/8	5/8	1.09	1.11	1.05	1/8	7/16
1	4-1/4	9/16	2	1-15/16	2-3/16	11/16	11/16	1.36	1.38	1.32	1/8	1/2
1-1/4	4-5/8	5/8	2-1/2	2-5/16	2-1/4	13/16	13/16	1.70	1.72	1.66	3/16	9/16
1-1/2	5	11/16	2-7/8	2-9/16	2-7/16	7/8	7/8	1.95	1.97	1.90	1/4	5/8
2	6	3/4	3-5/8	3-1/16	2-1/2	1	1	2.44	2.46	2.38	5/16	11/16
2-1/2	7	7/8	4-1/8	3-9/16	2-3/4	1-1/8	1-1/8	2.94	2.97	2.88	5/16	3/4
3	7-1/2	15/16	5	4-1/4	2-3/4	1-3/16	1-3/16	3.57	3.60	3.50	3/8	13/16
3-1/2	8-1/2	15/16	5-1/2	4-13/16	2-13/16	1-1/4	1-1/4	4.07	4.10	4.00	3/8	7/8
4	9	15/16	6-3/16	5-5/16	3	1-5/16	1-5/16	4.57	4.60	4.50	7/16	15/16
5	10	15/16	7.5/16	6-7/16	3-1/2	1-7/16	1-7/16	5.66	5.69	5.56	7/16	15/16
6	11	1	8-1/2	7-9/16	3-1/2	1-9/16	1-9/16	6.72	6.75	6.63	1/2	1-1/16
8	13-1/2	1-1/8	10-5/8	9-11/16	4	1-3/4	1-3/4	8.72	8.75	8.63	1/2	1-1/4
10	16	1-3/16	12-3/4	12	4	1-15/16	1-15/16	10.88	10.92	10.75	1/2	1-5/16
12	19	1-1/4	15	14-3/8	4-1/2	2-3/16	2-3/16	12.88	12.92	12.75	1/2	1-9/16
14	21	1-3/8	16-1/4	15-3/4	5	2-1/4	3-1/8	14.14	14.18	14.00	1/2	1-5/8
16	23-1/2	1-7/16	18-1/2	18	5	2-1/2	3-7/16	16.16	16.19	16.00	1/2	1-3/4
18	25	1-9/16	21	19-7/8	5-1/2	2-11/16	3-13/16	18.18	18.a36	18.00	1/2	1-15/16
a36	27-1/2	1-11/16	23	22	5-11/16	2-7/8	4-1/16	a36.a36	a36.25	a36.00	1/2	2-1/8
24	32	1-7/8	27-1/4	26-1/8	6	3-1/4	4-3/8	24.25	24.25	24.00	1/2	2-1/2

Carbon Steel A36 Flanges Weight Chart

Nominal Pipe Sizes (NPS)	Slip On (SORF)	Threaded (NPT)	Socket Weld (SWRF)	Lap Joint (Loose)	Blind (BLRF)	Weld Neck (WRNR)
½	1	1	2	1	2	2
¾	2	2	2	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
1½	3	3	3	3	4	4
2	5	5	5	5	5	6
2½	8	8	8	8	7	10
3	9	9	9	9	9	11.5
3½	11	12	11	11	13	12
4	13	13	13	13	17	16.5
5	15	15	15	15	a36	21
6	19	19	19	19	27	26
8	30	30	30	30	47	42
10	43	43	43	43	70	54
12	64	64	64	64	123	88
14	90	90	90	105	140	114
16	106	98	98	140	180	140
18	130	130	130	160	2a36	165
a36	165	165	165	195	285	197
22	185	185	185	245	355	225
24	2a36	2a36	2a36	275	430	268

Carbon Steel A36 Flange Exporter in Adelaide ,ASTM A36 CS Flanges Manufacturer in Melbourne, Carbon Steel A36 Flanges in Brisbane, Carbon Steel A36 Flanges Price List in Australia, Carbon Steel ANSI A36 Flanges Weight Chart, CS A36 Flanges Manufacturer in Melbourne, A36 Carbon Steel Flanges Distributor in Australia, Carbon Steel A36 Flange Sizes in mm, Carbon Steel A36 Flanges Distributor in Melbourne

Uses of Carbon Steel A36 Flanges

These Carbon Steel A36 Flanges find extensive use in pipelines, pressure vessels, industrial piping systems, and structural applications that demand strength, durability, and easy welding. They are commonly utilized in industries such as oil and gas, petrochemical, power generation, water distribution, and construction. Thanks to their excellent mechanical properties, versatility, and weldability, they are well-suited for high-pressure, high-stress, and temperature-variable environments. A36 Flanges are also favored in projects where long-term service, reliability, and structural integrity are crucial, providing efficient and durable solutions for industrial and mechanical needs.
