Travis Steel, located in Canberra, Australia, stands out as a top manufacturer and supplier of **Carbon Steel EN-9 Bars**. These high-quality steel bars are designed for strength, durability, and precision, making them perfect for various industrial applications. With a reputation for adhering to international standards, Travis Steel ensures that its EN-9 Bars deliver consistent mechanical performance and dimensional accuracy, even in the toughest conditions. These bars are widely utilized in the automotive, engineering, machinery, and tool-making sectors, thanks to their impressive hardness, wear resistance, and machinability. With a strong commitment to quality and customer satisfaction, Travis Steel has built a solid reputation as a trusted provider of high-performance steel solutions throughout Australia and beyond.
The composition of Carbon Steel EN-9 Bars includes carbon, manganese, phosphorus, sulfur, and a hint of silicon, creating a well-rounded mix of hardness, strength, and toughness. They boast a tensile strength between 600 to 800 MPa, along with superior yield strength, making them suitable for medium to heavy-duty applications. These bars are known for their excellent wear resistance, machinability, and mechanical stability. Their unique chemical makeup and mechanical properties guarantee durability, structural integrity, and dependable performance in various industrial and manufacturing processes.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |

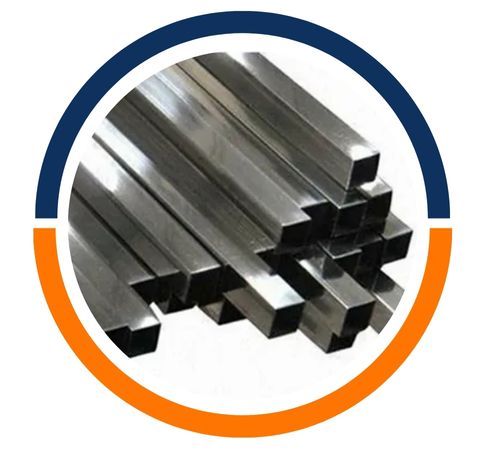

| Square Bar size | 4 to 100mm |

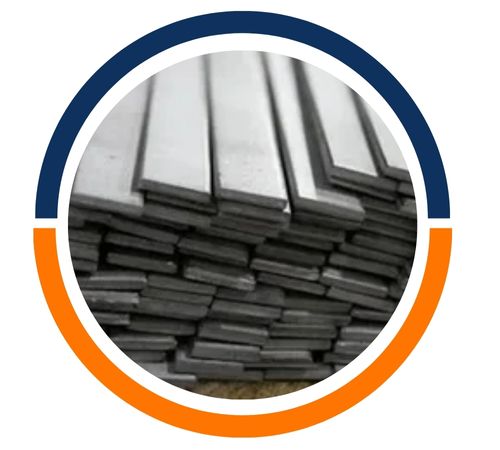

| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size (ins) | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1 1/8 | 1 1/4 | 1 3/8 | 1 1/2 | 1 3/4 | 1 7/8 | 2 | 2 1/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 3 | 3 |
| Size (mm) | 32 | 40 | 45 | 50 | 55 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 110 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 | 125 | 130 | 140 | 150 | 160 | 180 | 190 | 200 | 220 | 280 |
Carbon Steel EN-9 Bars are commonly used in making shafts, gears, bolts, and machine components that require high strength and wear resistance. They are particularly well-suited for automotive parts, engineering tools, machinery components, and construction equipment, where toughness and precision are essential. Additionally, these bars find their place in fabrication projects, industrial machinery, and applications that demand corrosion resistance and reliable mechanical performance. With compliance to EN standards and robust mechanical properties, Carbon Steel EN-9 Bars are the go-to choice for industries in search of durable, high-performance steel solutions.
